MEC connect Programming JTAG

Discussion in 'Computer Repair' started by bga, Aug 26, 2018.

MEC connect Programming JTAG 5 5 3votes
5/5, 3 votes

  1. bga

    bga Moderator

    Joined:
    Dec 12, 2014
    Messages:
    1,450
    Likes Received:
    222
    MEC connect Programming JTAG
    Carbon X1.jpg.zip
    NM-A091 MEC1633L JTAG point.jpg.zip
    NM-A102.jpg.zip
    NM-A131 MEC1633L Jtag Interface.zip
    MEC1621 MBX-256

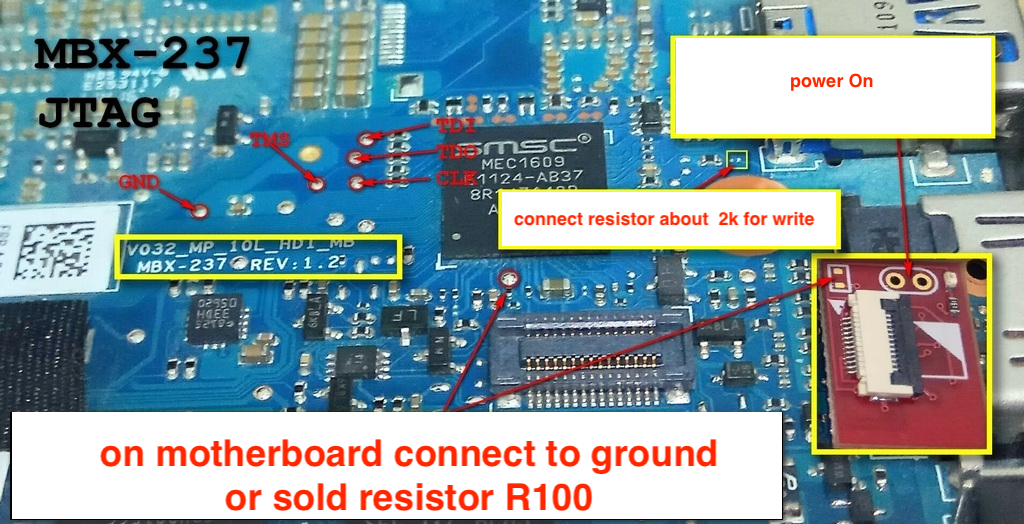

    MBX-237

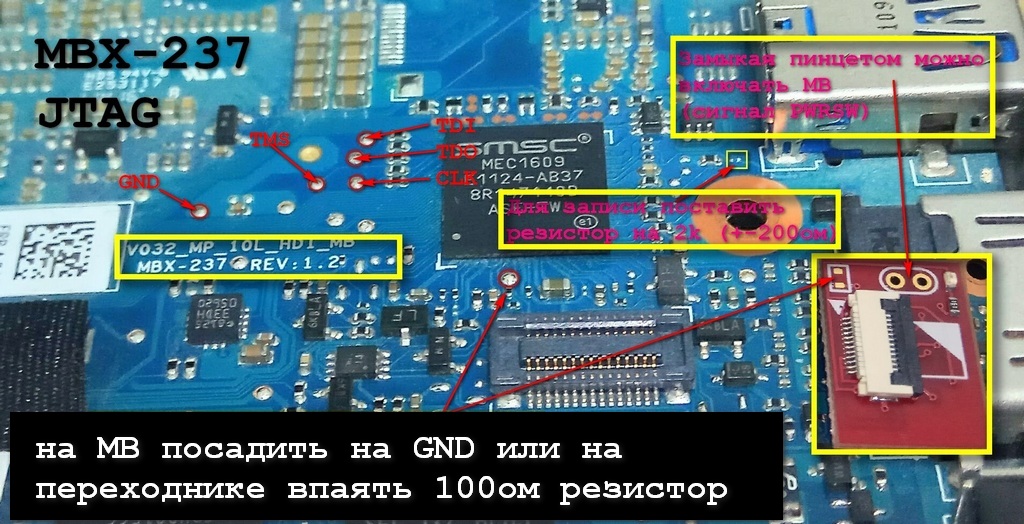

    MBX-237
    MEC1609
    MEC1619
    MEC1621 MBX-256


    Attached Files:

    • Like Like x 1
  2. Loading...

    Similar Threads - connect Programming JTAG Forum Date
    need eDP Display(LVDS) Connector for 820-00244-a Tools Jan 23, 2018
    Inventec Inventec KONG 2.0 (PVR) PR connector schematic Schematic Laptop Mar 4, 2015
    Thủ thuật Fly Flylife Connect 7.85 3G slim service manual Schematic & Service manual Dec 28, 2014
    MSI AMD MS-V132 RV635 DDR2 - PCI-E Edge Connector VGA Dec 19, 2014
    MSI AMD MS-V132 RV635 DDR2 - PCI-E Edge Connector VGA Dec 19, 2014

  3. therealjayvi

    therealjayvi New Member

    Joined:
    Jun 10, 2018
    Messages:
    11
    Likes Received:
    0
    do you have JTAG pinouts for MEC1653-BA1?

  4. cifam

    cifam VIP PRO

    Joined:
    May 12, 2015
    Messages:
    159
    Likes Received:
    34
    YES THERE IS

    • Like Like x 1
  5. therealjayvi

    therealjayvi New Member

    Joined:
    Jun 10, 2018
    Messages:
    11
    Likes Received:
    0
    Do you have them? Or do you mind sharing?

  6. Warren

    Warren VIP MENBER

    Joined:
    Aug 8, 2017
    Messages:
    10
    Likes Received:
    0
    Many thanks, BGA for downloads
