Alienware 17 R5 DDR51 LA-F551P

Star Rating
5.00 star(s)
Alienware 17 R5 DDR51 LA-F551P
BIOS Schematics
boardview
LAF551PR10-0221.cad
LA-F551P TOP.pdf
LA-F551P BOTTOM.pdf

Screen Shot 2020-11-11 at 19.21.46.jpgScreen Shot 2021-01-15 at 14.11.07.jpgScreen Shot 2020-11-26 at 21.40.10.jpg


Download list

UE2.bin
1 MB · Views: 467

UH4.bin
16 MB · Views: 639

alienware_15_r4_17_r5_1.7.0.bin
16 MB · Views: 571

ANRDDR5100 ANRDDR7100 LA-F551p.pdf
10 MB · Views: 1,027

LA-F551P BOTTOM.pdf
154.5 KB · Views: 359

LA-F551P TOP.pdf
207 KB · Views: 354

LAF551PR10-0221.cad
3.8 MB · Views: 732

KB9012_20210520-LA-F551P.BIN.zip
68.1 KB · Views: 279

Any ideas where I could get a replacement chip?

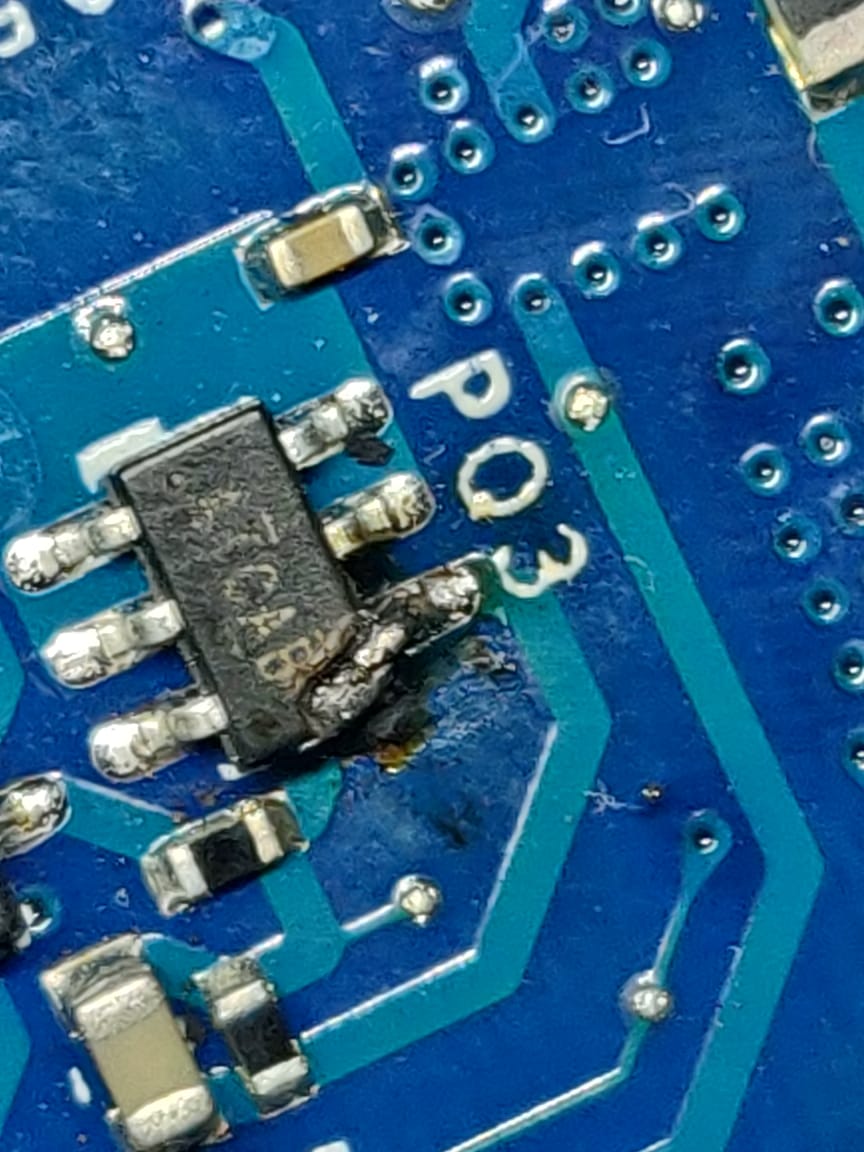

PQ3 - on connecting battery, chip fried!
Super schematics, thank you!

Edit: found it! SI3457CDV-T1-GE3 from Vishay - thanks boys :)
Edit 2: found another chip which fried - B04N03 from PQ701
