Asus Z170-PRO

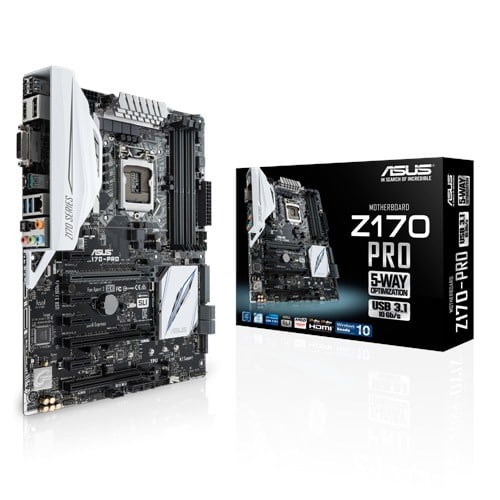

ASUS Z170-PRO
BIOS Z170-PRO-ASUS-1101

One click for superb performance, with Intel® USB 3.1 Controller
  • 5-Way Optimization: One click to optimize your entire system; plus a dedicated onboard water-pump header
  • Intel® USB 3.1 on board: One Type-A port plus a reversible Type-C port
  • ASUS Pro Clock Technology: Extends base clocks and improves stability for extreme overclocking
  • Crystal Sound 3, Intel LAN and Turbo LAN: Flawless audio and low-latency networking
  • 5X Protection II: Advanced hardware safeguards

  • CPU
    Intel® Socket 1151 for 6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® Z170
  • Memory
    4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133(O.C.) MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/DisplayPort ports
    - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
    Maximum shared memory of 512 MB
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
    Supports up to 3 displays simultaneously
    DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
  • Multi-GPU Support
    Supports NVIDIA® Quad-GPU SLI™ Technology
    Supports NVIDIA® 2-Way SLI™ Technology
    Supports AMD Quad-GPU CrossFireX™ Technology
    Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots
    2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
    1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
    4 x PCIe 2.0 x1
  • Storage
    Intel® Z170 chipset :
    1 x SATA Express port, Compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 x4 Socket 3, *2, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3
    6 x SATA 6Gb/s port(s), gray
    Support Raid 0, 1, 5, 10
    Supports Intel® Smart Response Technology*4
  • LAN
    Intel® I219V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
    Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance
    ASUS Turbo LAN Utility
    ASUS LAN Guard
  • Audio
    Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
    - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
    Audio Feature :
    - Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
    - DTS Connect
    - DTS Studio Sound
    - Optical S/PDIF out port(s) at back panel
    - LED-lit Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, with a gorgeous illuminated trace path
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Audio amplifier: Provides the highest-quality sound for headphone and speakers
    - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    - Unique de-pop circuit: Reduces start-up popping noise to audio outputs
    - Top notch audio sensation delivers according to the audio configuration
    - EMI protection cover to prevent electrical noise to affect the amplifier quality
    - Absolute Pitch 192khz/24bit true BD lossless sound
    - Power pre-regulator: Reduces power input noise to ensure consistent performance
    Separate layer for left and right track, ensuring both sound deliver equal quality
  • USB Ports
    Intel® Z170 chipset :
    6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
    Intel® Z170 chipset :
    6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
    Intel® USB 3.1 controller :
    1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, , Type-C)
    Intel® USB 3.1 controller :
    1 x USB 3.1/3.0/2.0 port(s) (1 at back panel, teal blue, Type-A)
  • Special Features
    OC Design - ASUS PRO Clock Technology
    - Full BCLK range for extreme overclocking performance
    5-Way Optimization by Dual Intelligent Processors 5
    - Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.
    ASUS 5X Protection II :
    - ASUS LANGuard - 2.5X higher surge tolerance
    - ASUS Overvoltage Protection - World-class circuit-protecting power design
    - ASUS DIGI+ VRM - 8 Phase digital power design
    - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits
    - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability
    ASUS TPU :
    - Auto Tuning
    - GPU Boost
    ASUS EPU :
    - EPU
    ASUS Digital Power Design :
    - Industry leading Digital 8 Phase Power Design
    ASUS Exclusive Features :
    - Remote GO!
    - MemOK!
    - AI Suite 3
    - Ai Charger
    - M.2 & SATA Express
    - Anti-Surge
    - Front Panel USB 3.0 Support
    - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    - USB 3.1 Boost
    - Disk Unlocker
    - Turbo LAN
    - Crystal Sound 3
    - EZ XMP ASUS Exclusive Features
    - Mobo Connect
    - PC Cleaner
    Remote Entertainment
    - Media Streamer
    - HyStream
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 3
    ASUS EZ DIY :
    - DirectKey
    - Precision Tweaker 2
    - ASUS O.C. Tuner
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - Multi-language BIOS
    - Push Notice
    ASUS Q-Design :
    - ASUS Q-Shield
    - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
    - ASUS Q-Slot
    - ASUS Q-DIMM
    - ASUS Q-Connector
    Special Memory O.C. Design
    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)
    Media Streamer
    Turbo App
    Fan Xpert 3
  • Operating System Support
    Windows® 10 , 64bit
    Windows® 8.1 , 64bit
    Windows® 7
  • Back I/O Ports
    1 x DVI-D
    1 x DisplayPort
    1 x HDMI
    1 x LAN (RJ45) port(s)
    1 x USB 3.1 Type-C
    1 x USB 3.1 (teal blue)Type-A
    2 x USB 3.0 (blue)
    2 x USB 2.0
    1 x Optical S/PDIF out
    1 x 8-channel Audio I/O
  • Internal I/O Ports
    2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x SATA Express connector: , Compatible with 2 x SATA 6.0 Gb/s ports
    1 x M.2 Socket 3
    6 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    1 x CPU OPT Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (4 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x Thunderbolt header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Q-Connector)
    1 x DRCT header(s)
    1 x MemOK! button(s)
    1 x Clear CMOS jumper(s)
    1 x 5-pin EXT_FAN(Extension Fan) connector
    1 x Water Pump header (4-pin)
    1 x 14-1 pin TPM connector
  • Accessories
    User's manual
    ASUS Q-Shield
    4 x SATA 6Gb/s cable(s)
    1 x M.2 Screw Package
    1 x CPU installation tool
    1 x Supporting DVD
    1 x SLI bridge(s)
    1 x Q-connector(s) (1 in 1)
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WfM 2.0, DMI 3.0, WOL by PME, PXE
  • Support Disc
    Drivers
    ASUS Utilities
    EZ Update
    Anti-virus software (OEM version)
  • Form Factor
    ATX Form Factor
    12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
  • Note
    *1: The PCIe x16_3 slot shares bandwidth with SATA6G_56. The PCIe x16_3 is default set at x2 mode. Supports Intel® RST for PCIE RAID storage.
    *2: Supports PCIE RAID configurations via onboard M.2 and PCIex16_3.
    *3: M.2 shares SATA mode with SATA Express. Change this item before installing M.2 SATA devices.
    *4: These functions will work depending on the CPU installed.



Download list

Z170-PRO-ASUS-1101.BIN.zip
7.9 MB · Views: 86
