ThinkPad 13 BIOS DA0PS9MB8E0 Quanta OEM PS9 boardview Schematic diagram

Star Rating

5.00 star(s)

Lenovo ThinkPad 13
BIOS DA0PS9MB8E0 REV E
Lenovo ThinkPad 13 S2 Series Schematic – Quanta PS9 (DA0PS9MB8E0) Schematics
Quanta OEM PS9 boardview
PS9 Bell2 KBL-U UMA r1A
PS9 Bell2 KBL-U UMA.brd
Bell2_Intel Kabylake-U Platform UMA Block Diagram (Windows)



[Landskape6]

send photo I check

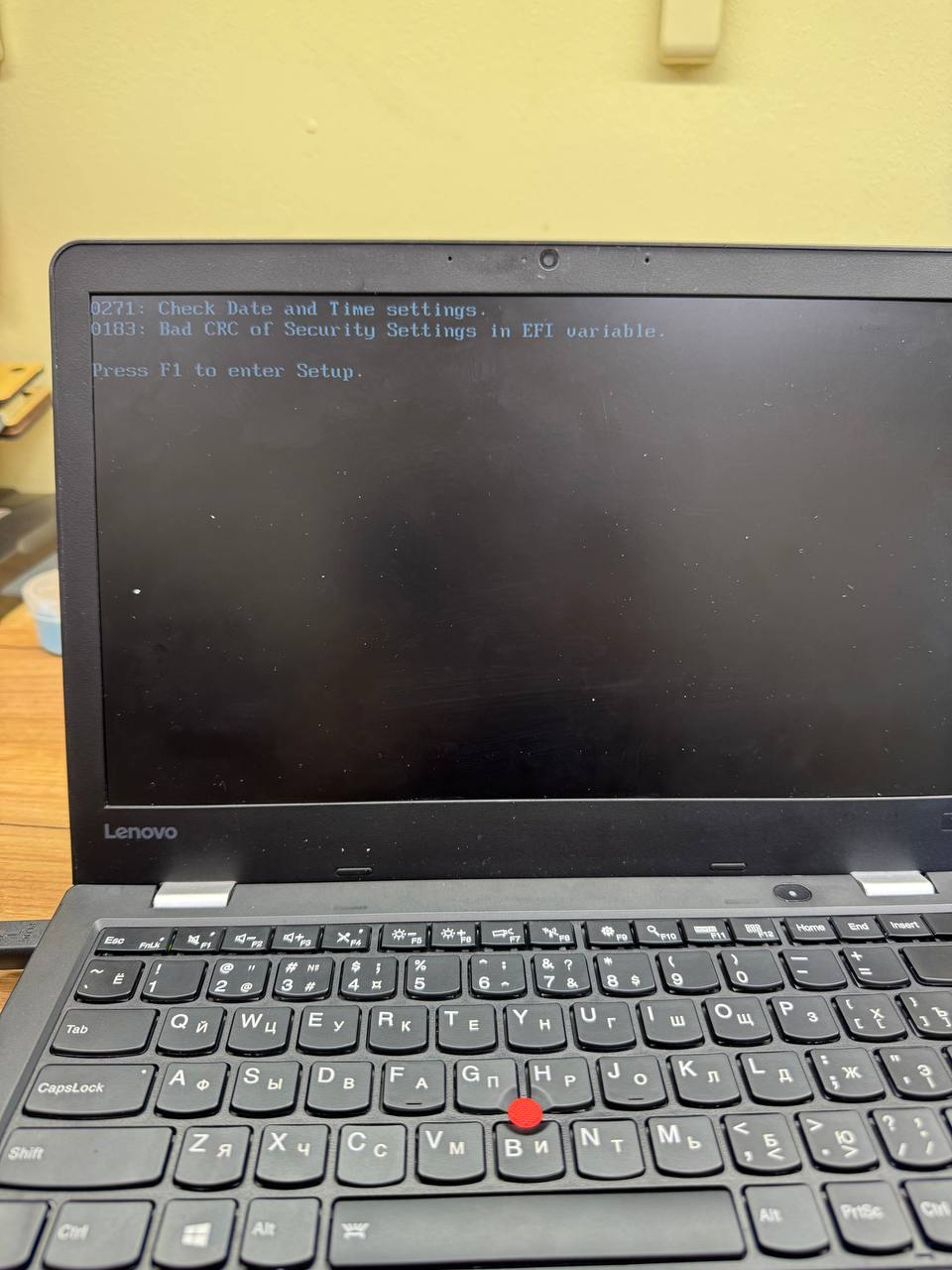

I have uploaded all the original files and one of yours for 16 MB. When changing ec BIOS, the password disappears but a temperature sensor error appears



[ThienBui]

disappears but a temperature sensor error appears

Maybe it's not an EC issue



[Landskape6]

Maybe it's not an EC issue

If i don't flash the EC firmware from this forum. There are no errors. And the fan works fine. But when i flashing ec, the fan is at maximum speed and password is desapears



[ThienBui]

If i don't flash the EC firmware from this forum. There are no errors. And the fan works fine. But when i flashing ec, the fan is at maximum speed and password is desapears

Is this an original error? Or after you program the EC???
