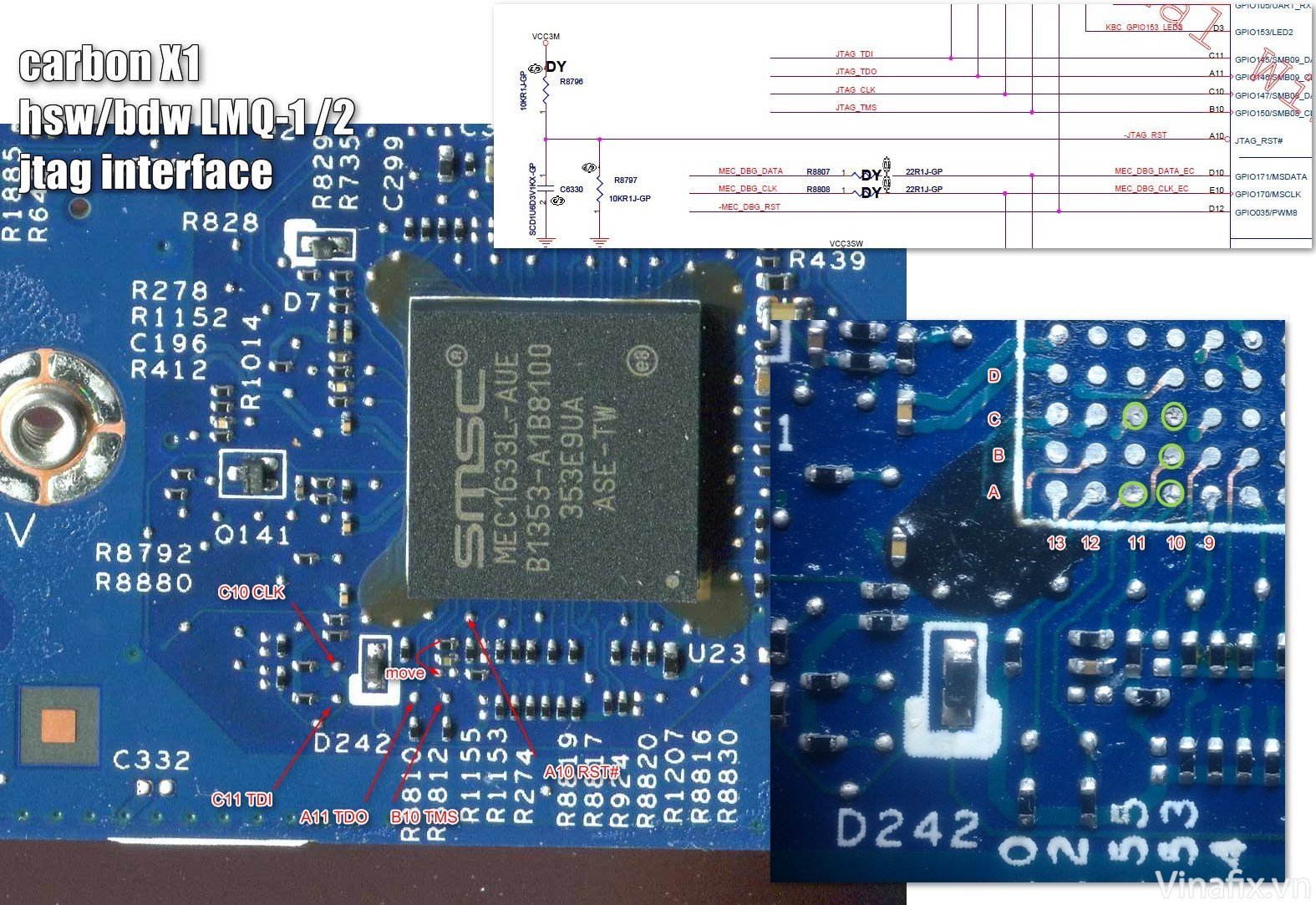

Do you know where can i solder to JTAG_RST? Cant find it without boardview



[.n 9446naj]

Do you know where can i solder to JTAG_RST? Cant find it without boardview



[ElectroGarden]

its really different in lenovo t480 et480 nm-b501



[.n 9446naj]

its really different in lenovo t480 et480 nm-b501

T480



[ElectroGarden]

T480

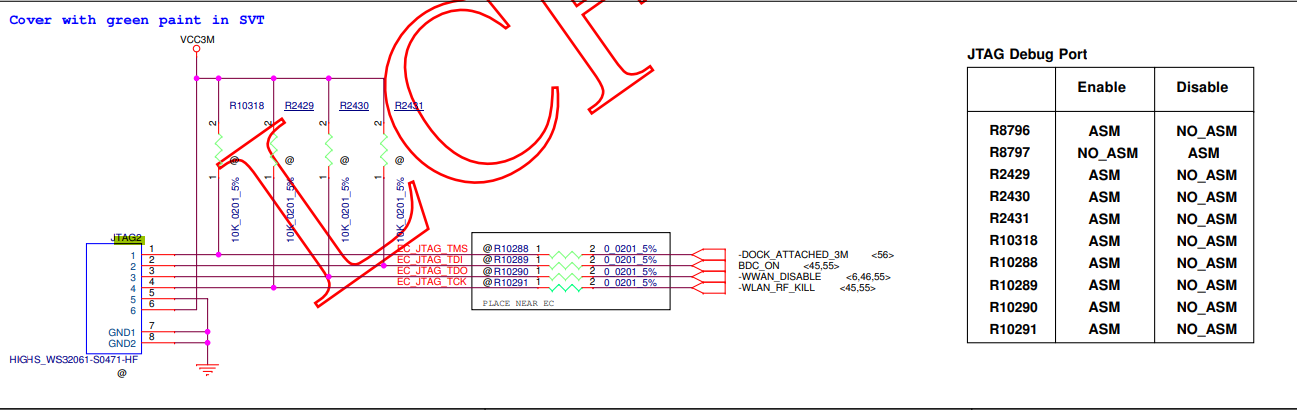

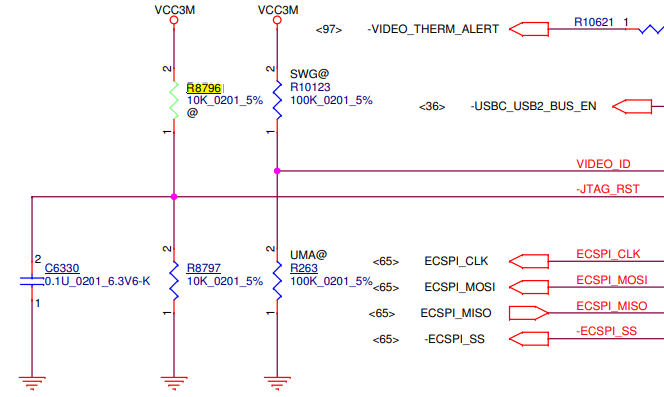

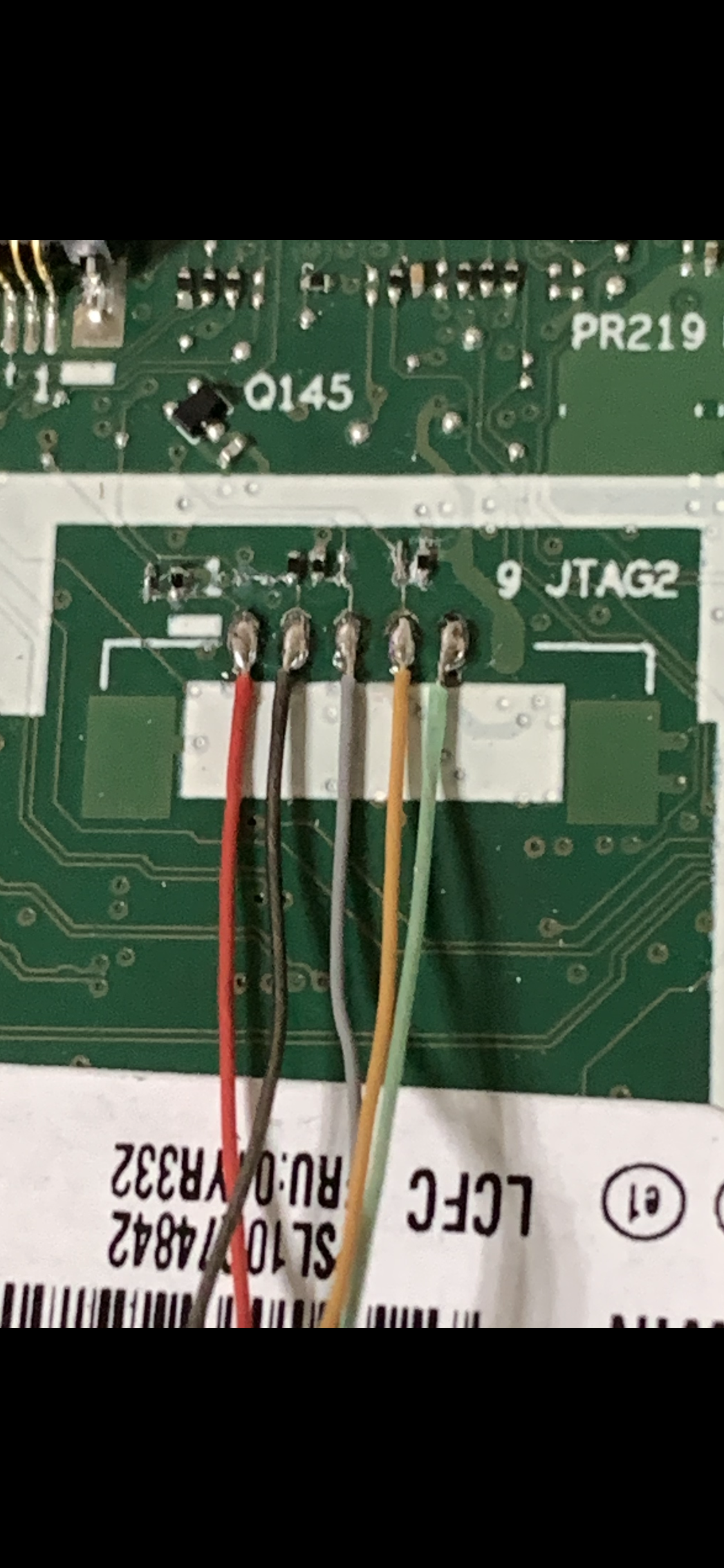

Hi, thank you for updated photo, can you explain me how to move resistor R8797? JTAG Debug Port Table telling us that we have to do it. On your photo we cant find JTAG_RST pin.



[khoai khoe hn]

Nhờ ad @ThienBui clearme
Lenovo T480



[ThienBui]

Nhờ ad @ThienBui clearme
Lenovo T480



[khoai khoe hn]

thank ad



[ThienBui]

Build this file..



[JackT]

hi, does anyone have high res pics of the board?



[ThienBui]

hi, does anyone have high res pics of the board?

Unavailable



[hasaan8636]

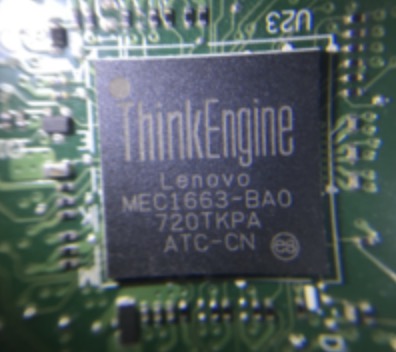

You know what MEC1663 is?
also patch service you need to buy for $ 30

$30 for one time or for each unlocking...???



[hasaan8636]

You are not technical ?
all Programming as bios.
View attachment 101081

will you provied programmer for this chip....
how much its cost.....



[ThienBui]

will you provied programmer for this chip....
how much its cost.....

you send BIOS 16MB I patch and provided key you enter, done



[mubanga kabumbu]

HEY THERE ... THIS FILE HAS NO DISPLAY ... COULD YOU HAVE A LOOK AND ADVISE
