Dell DELL E7440 LA-9591P REV 1.0

Star Rating
5.00 star(s)
DELL E7440
LA-9591P REV:1.0

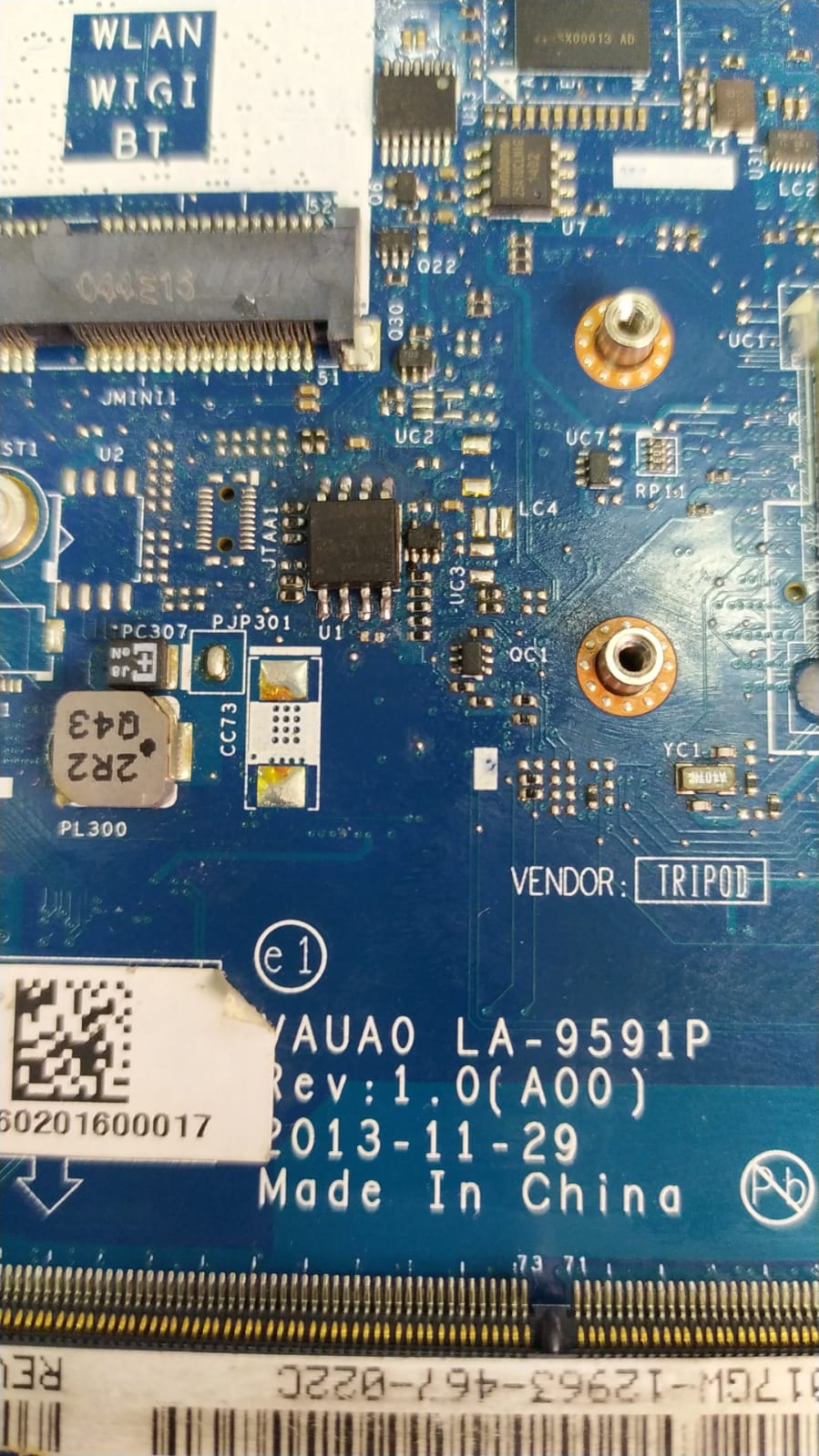

Dell Latitude E7440 VAUAO LA-9591P Rev1.0(A00) photo
Schematics boardview BIOS
LA-9591p.cad

 la-9591p boardview.jpgLA-9591P.png

Motherboard

Dell Latitude E7440
Core i5 BGA - UMA
Core i5 vPro BGA -UMA
VAUAO LA-9591P
Rev 1.0 (A00)
Schematic.

COMPAL CONFIDENTIAL
MODEL NAME : VAUA0
PCB NO : LA-9591P (DAA00005W10)
BOM P/N : 4319LK31L01
Goliad 14"
2013-05-17
Haswell ULT
REV : 1.0 (A00)

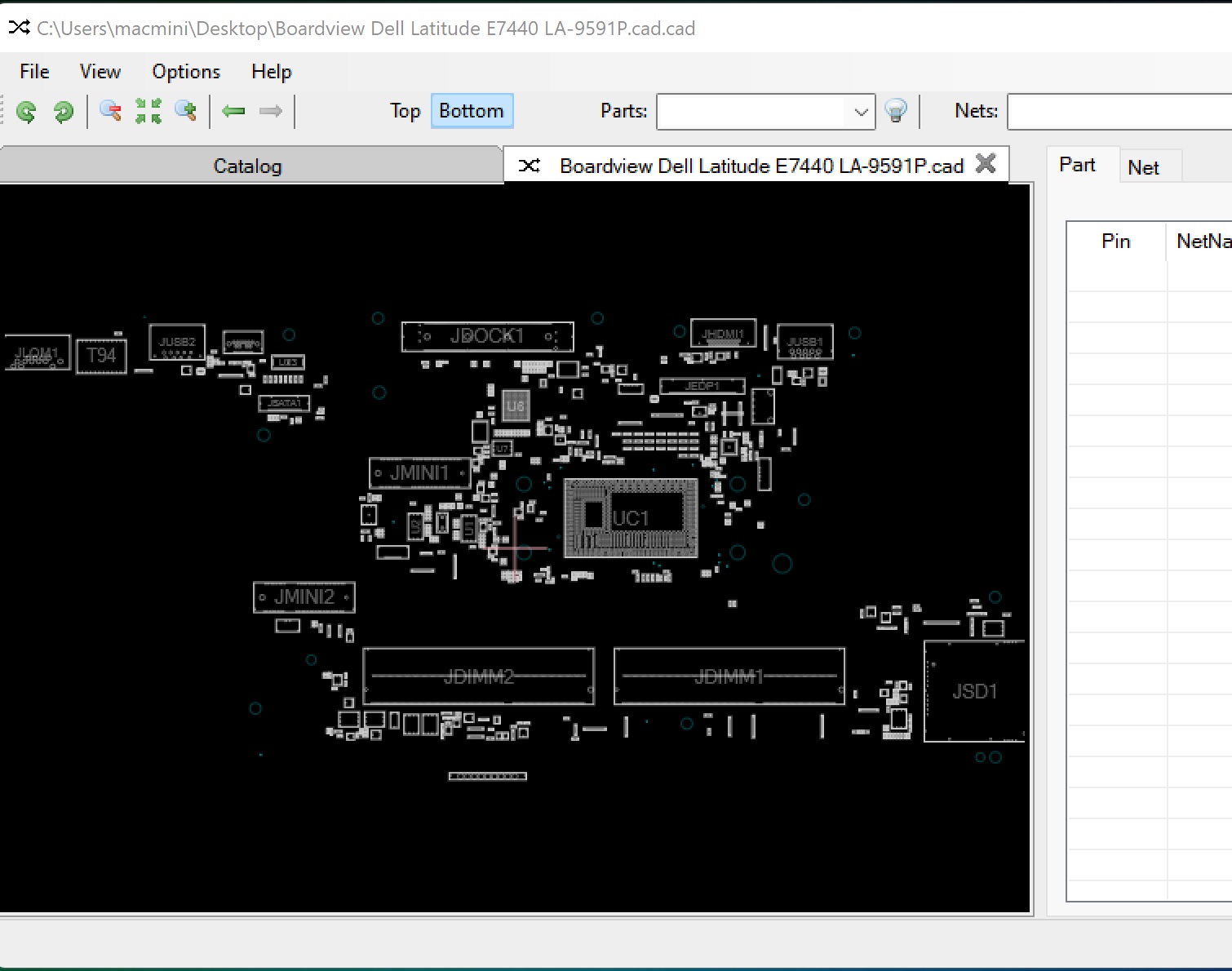

boardview LA-9591P



Open boardview
allegro free viewer 16.6


Download list


U2.BIN.zip
2.8 MB · Views: 7,248

U1.BIN.zip
4 MB · Views: 6,916

Compal LA-9591P r1.0.brd.zip
13.3 MB · Views: 6,552




Dell Latitude E7440 LA-9591P.cad
1.9 MB · Views: 4,516

Dell Latitude E7440 LA-9591P.cad.zip
228.1 KB · Views: 2,458
