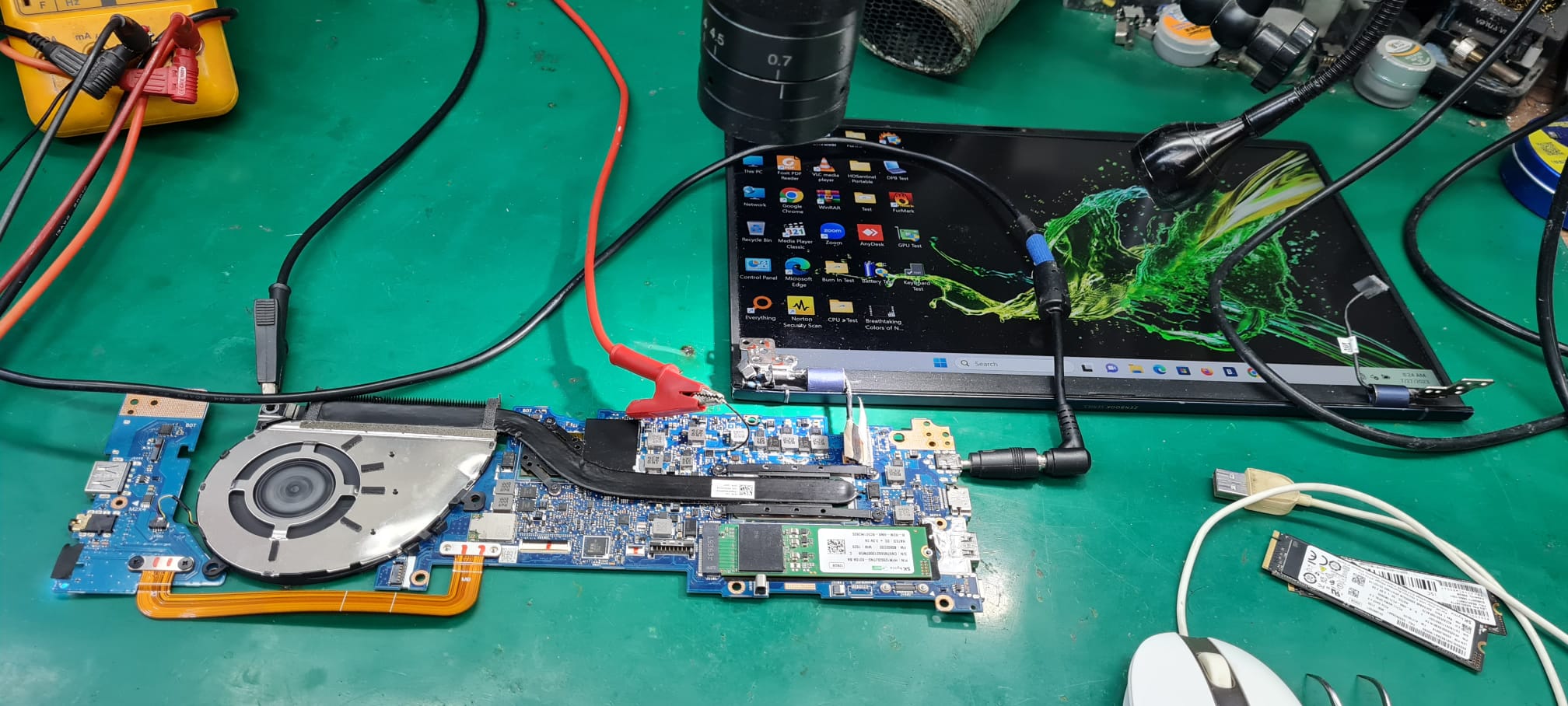

ASUS UX434F UX334FL photo



[hgzy ahmd]

HI GUYS
PLEASE I NEED HELP WITH THIS SCHEMATIC AND BOARDVIEW

ASUS ZenBook UX334FL UX434FL UX434FAC UX463FL schematic boardview

Schematics and BoardView for ASUS PCB marked UX334FL MAIN BOARD REV 2.0 with instant delivery and 100% virus-free guarantee in contrast to other resources

realschematic.com

THANKS



[ThienBui]

HI GUYS
PLEASE I NEED HELP WITH THIS SCHEMATIC AND BOARDVIEW

If you believe it, you can buy it yourself



[hgzy ahmd]

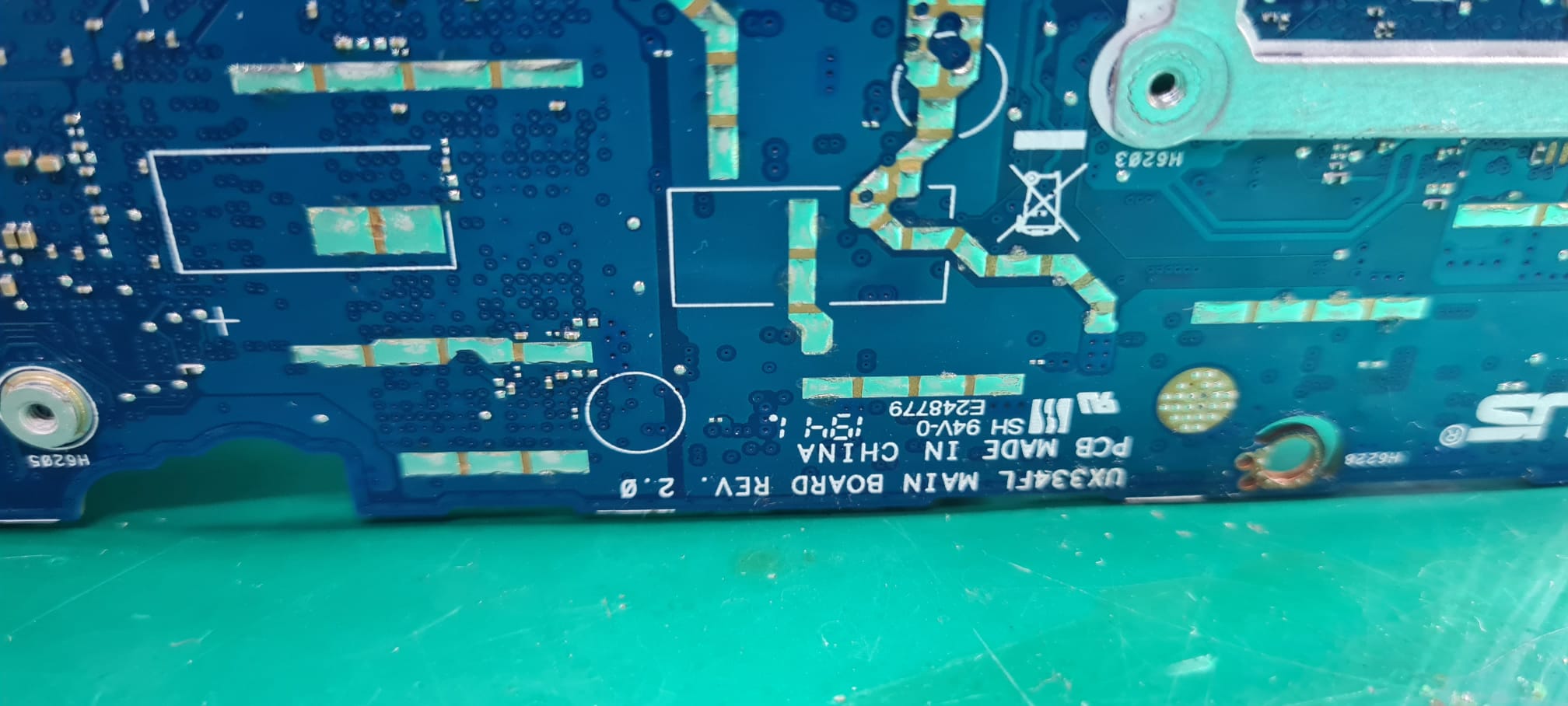

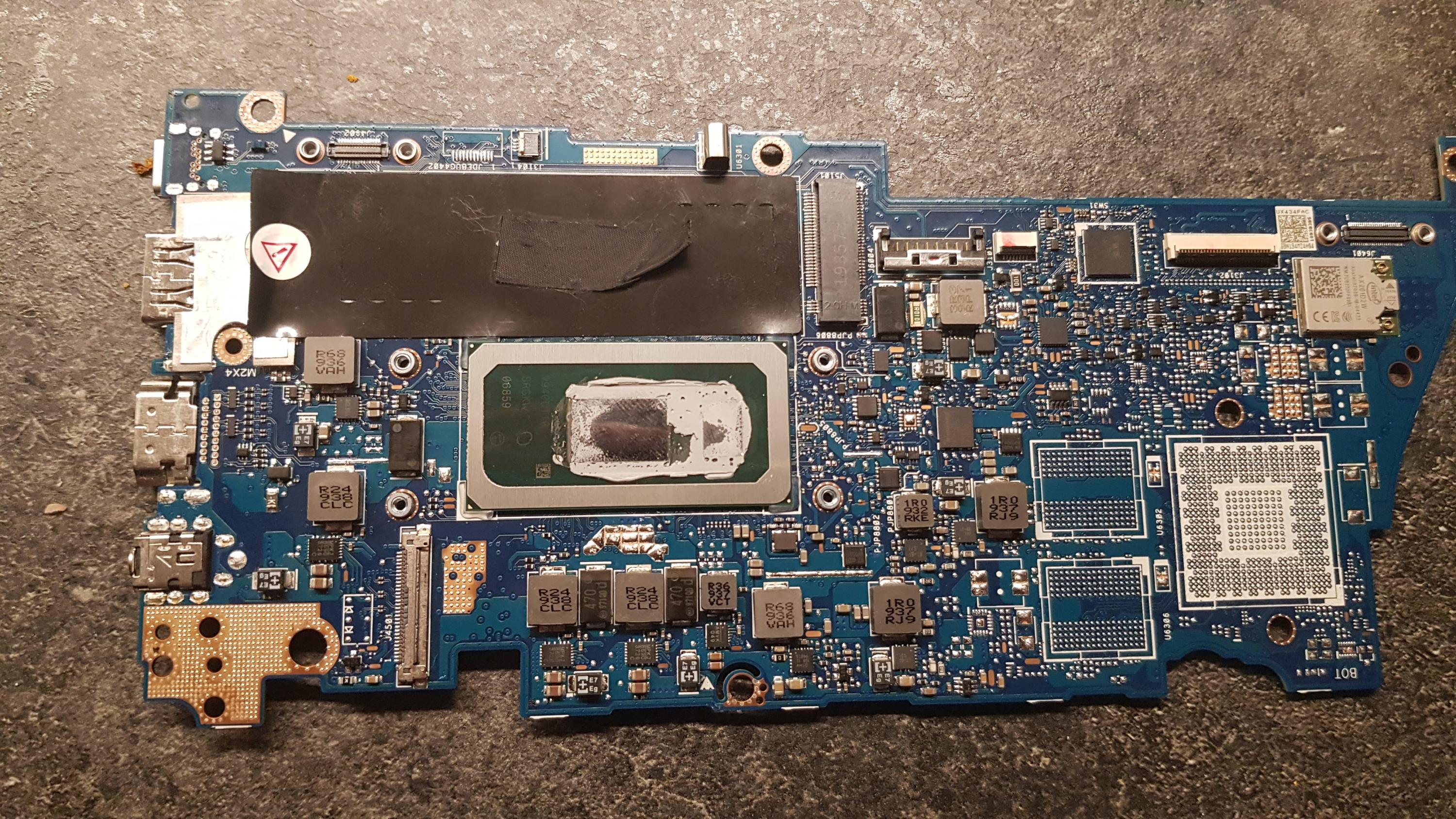

ZenBook UX334FL MOBO​

IT ALREADY LIQUID DAMAGED AND PRE-REPAIRED

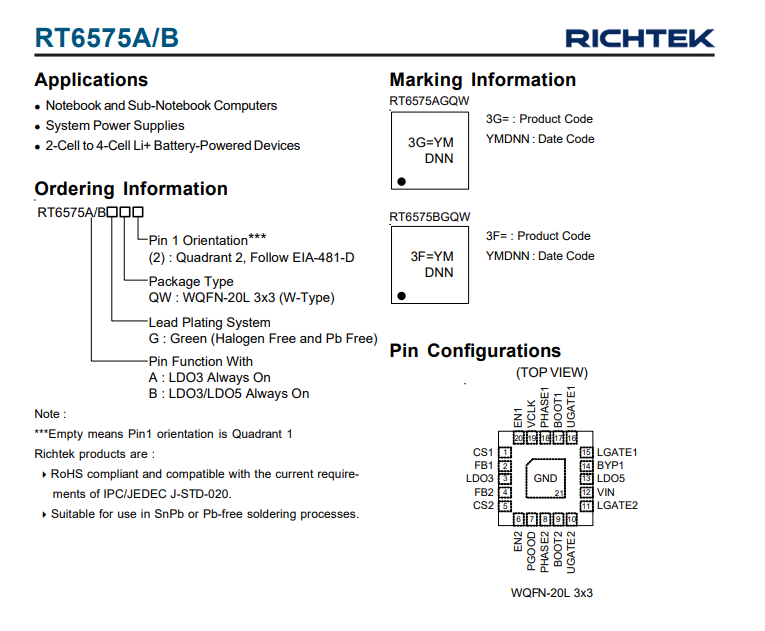

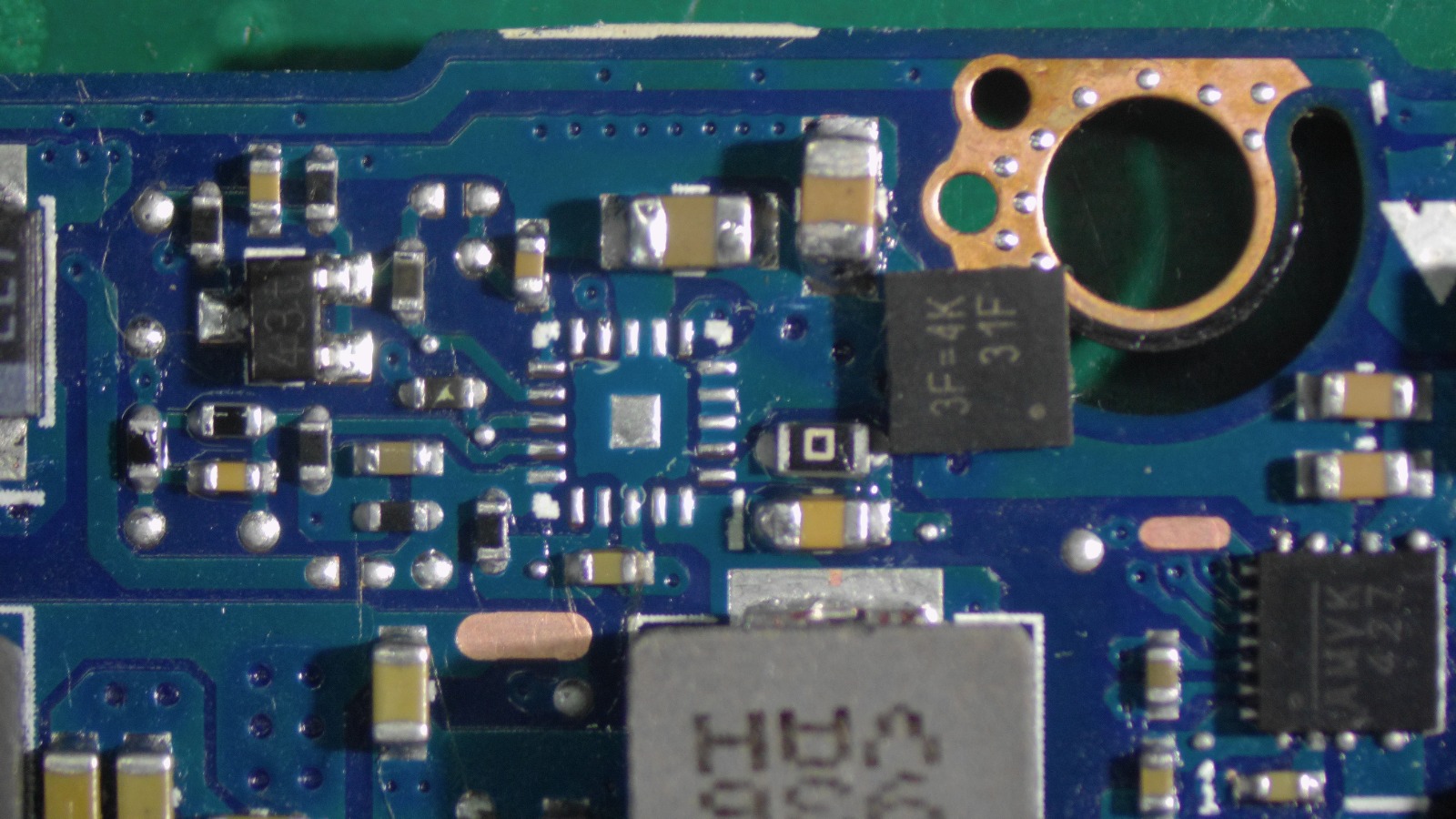

I FOUND SHORT CIRCUIT IN BOARD DUE WRONG 3F= MARKED IC DC-DC CONTROLLER REPLACED MISTAKENLY AND IT " Dual-Channel Synchronous DC-DC Step-Down Controller with 5V/3.3V LDOs".

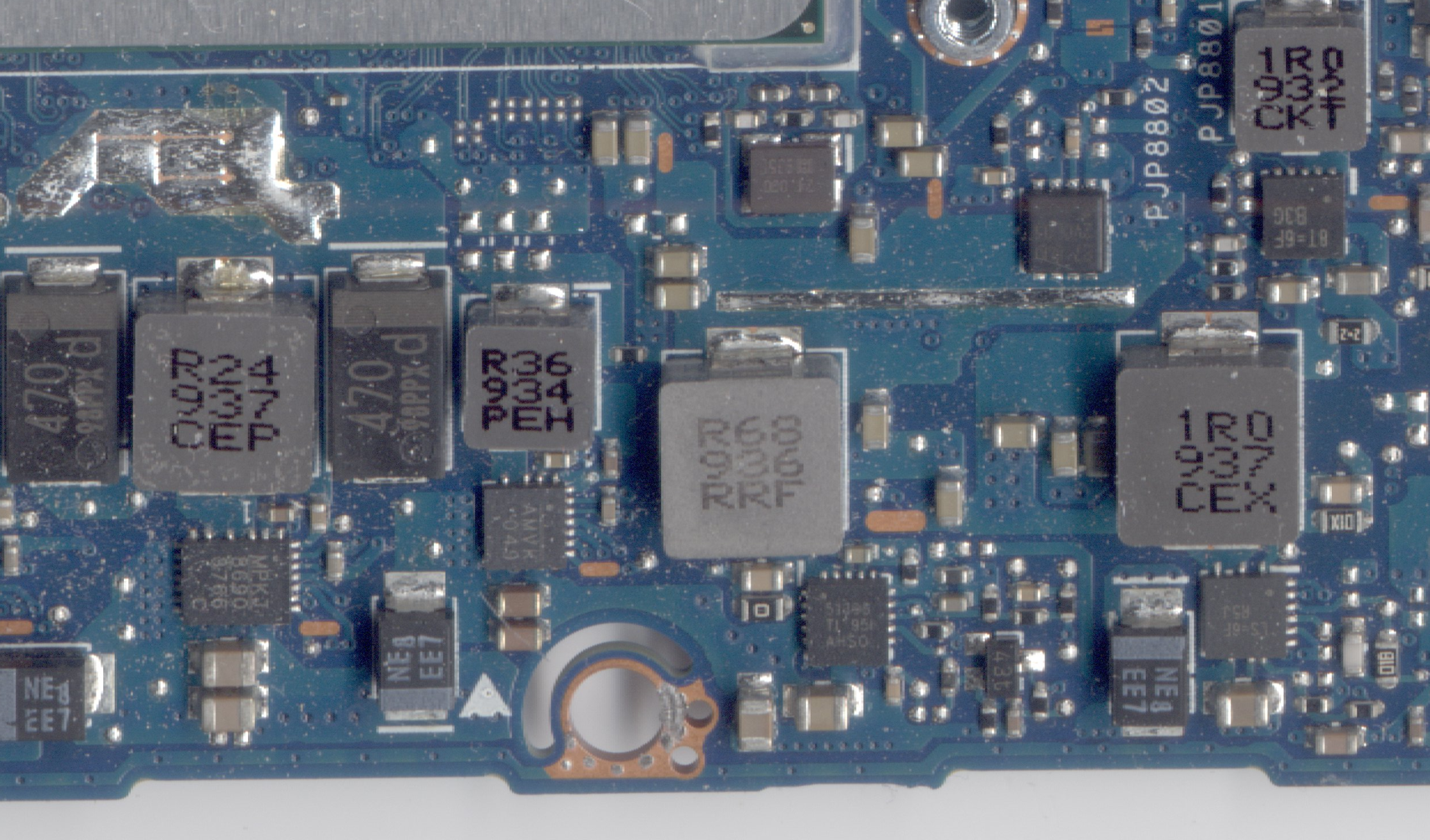

I SUPPOSED THE TRUE DC-DC IC IS TPS51395 SHOWN IN THE PHOTOS IN THE FIRST OF THIS THREAD , AND MORE THAN 10 COMPONENTS ARE REMOVED FROM BOARD

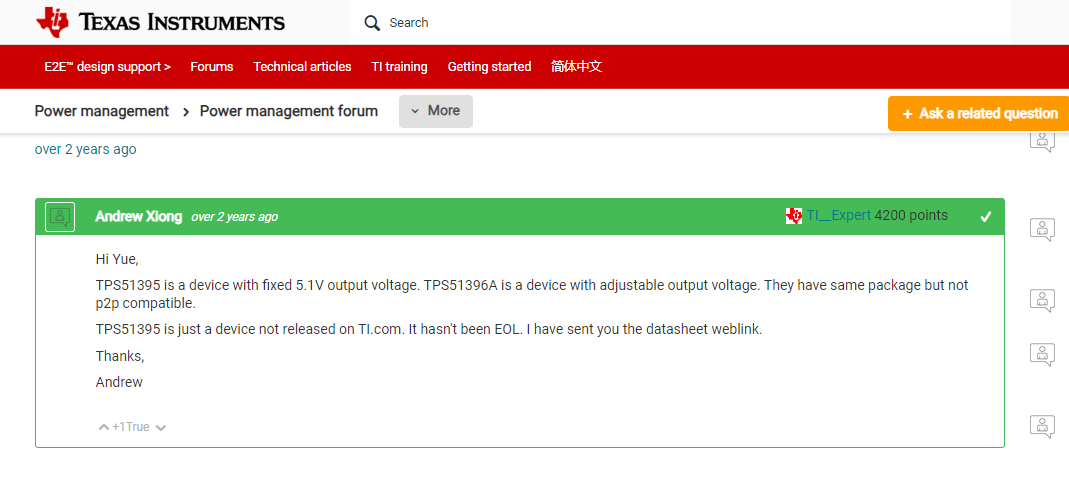

UNFORTUNATELY TPS51395 PDF NOT AVAILABLE , BUT IN " Texas Instruments" WEBSITE SOMEONE NOTICESD THAT IC IS 5.1V OUTPUT !? AND I SUPPOSE IT'S WRONG .

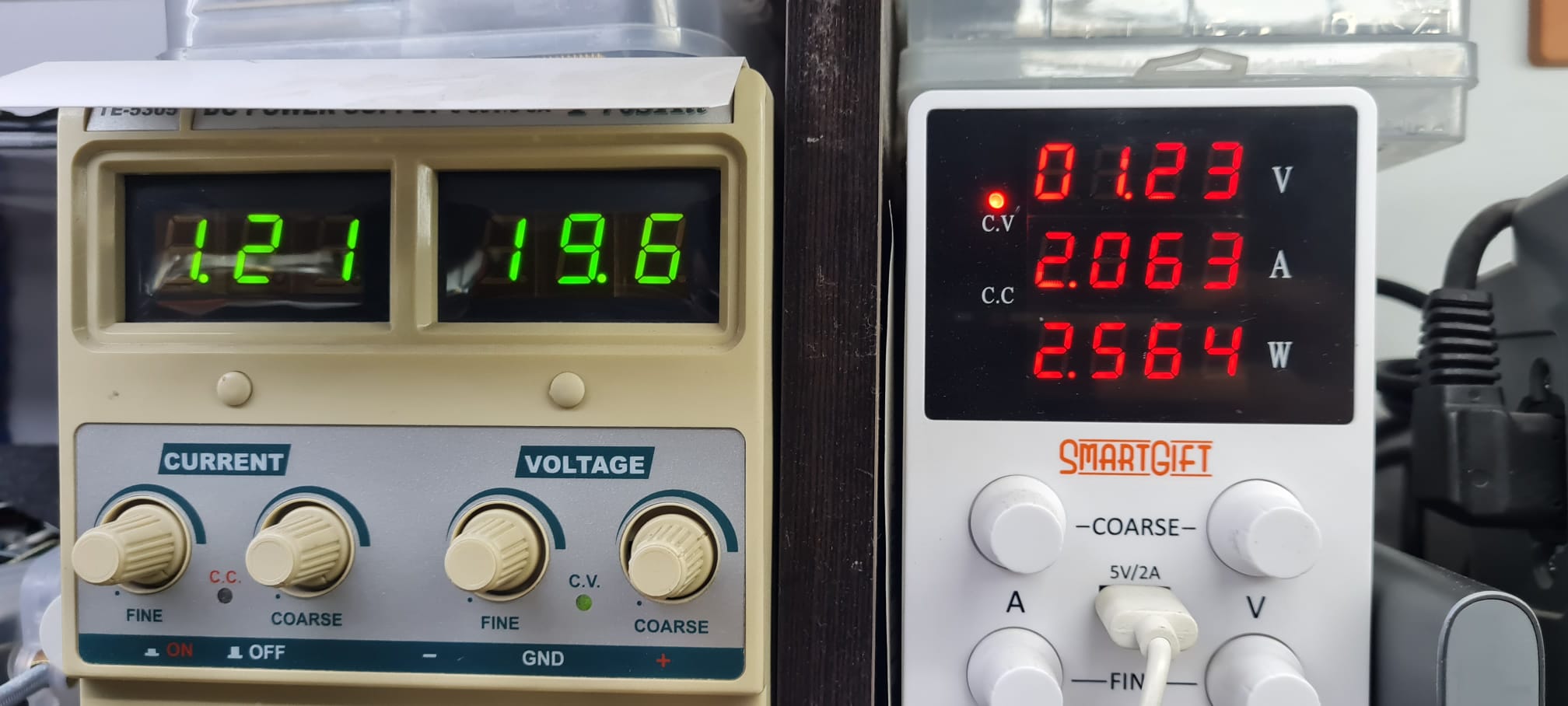

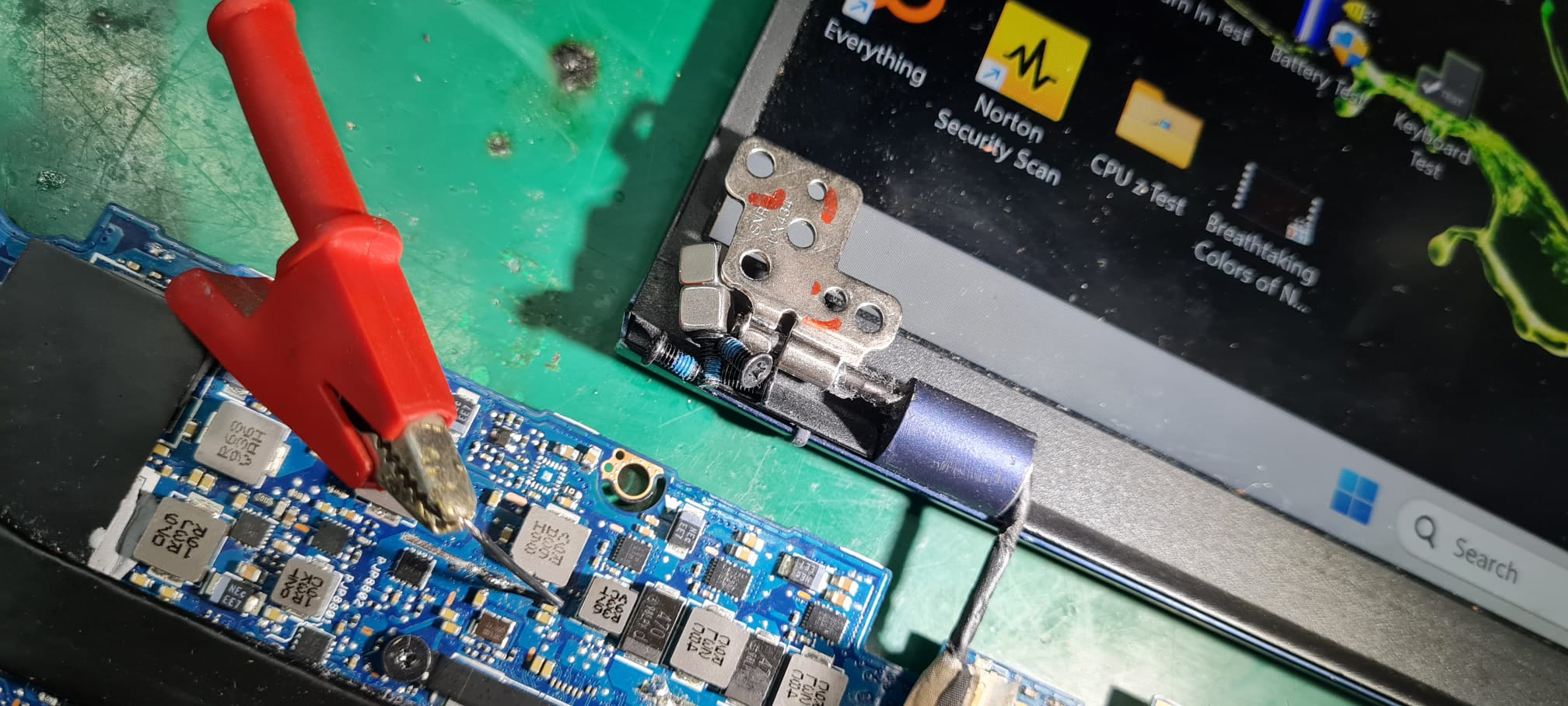

I SUPPOSED THIS STEP DOWN REGULATOR OUTPUT IS 1.2 V AND WHEN I PROVIDE EXTERNAL 1.2V THE BOARD WORKS PERFECTLY .

SUGGESTIONS WITH NO SCHEMATIC AND BOARDVIEW AVAILABLE ?
