ASUS TUF Gaming FX505DD/FX505DT/FX505DU TUF705DT

Star Rating
5.00 star(s)

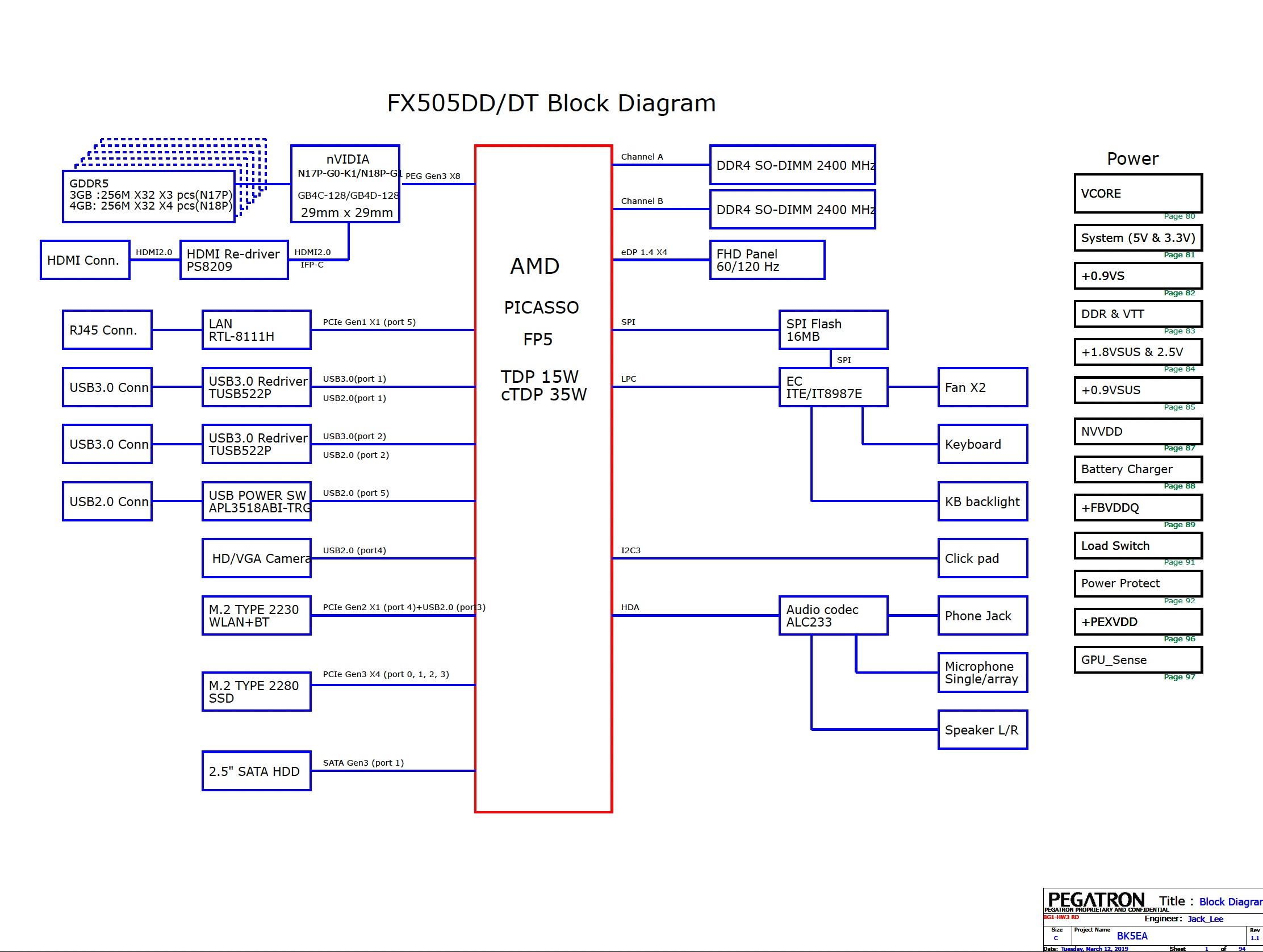

ASUS TUF Gaming FX505DD/DT/DU
AMD
FX505DT, FX505DU

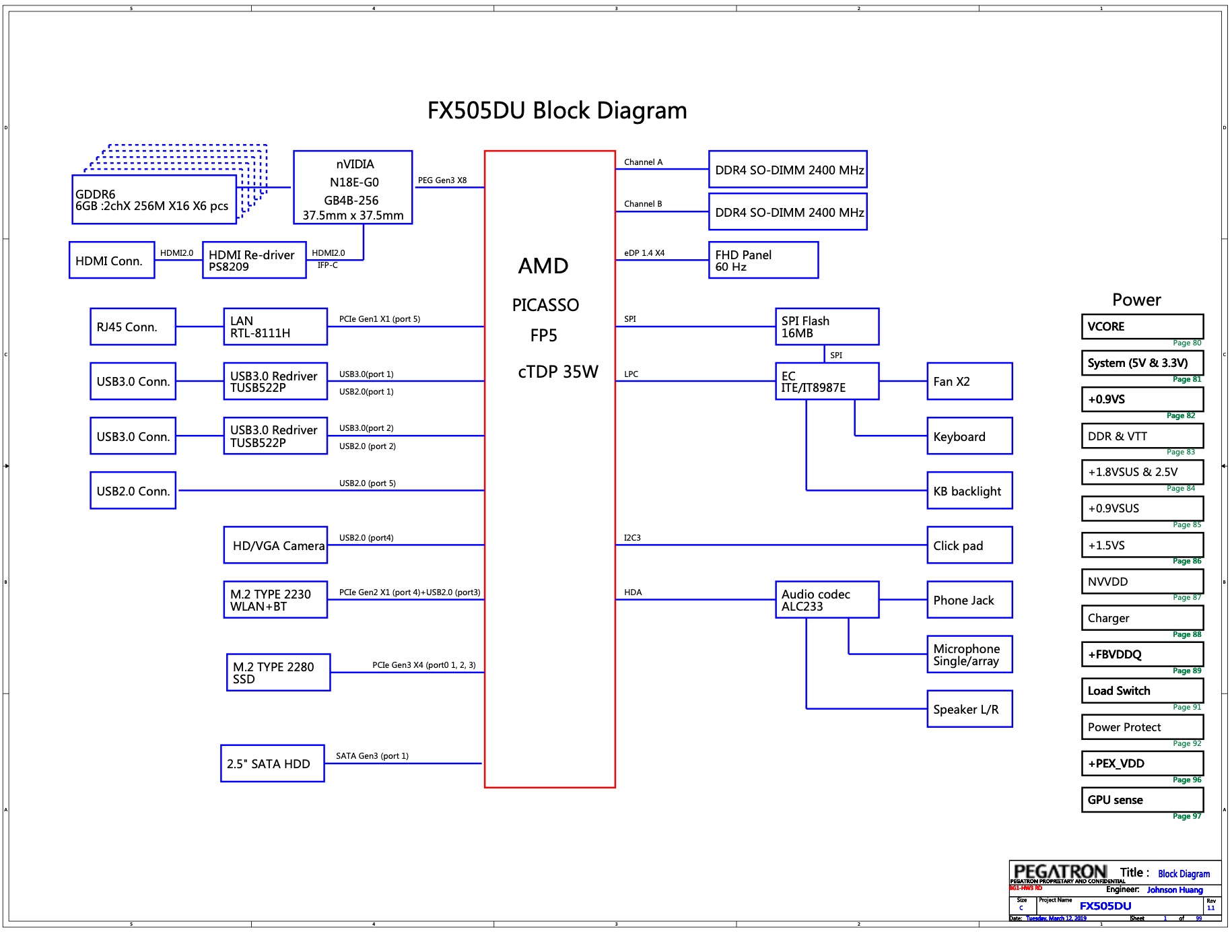

Schematics FX505DU REV2.0.pdf
FX505DD KB_pins=34 LEFT DOWN 08MM PD0=29 PD1=20 PD2=15 PD3=23 PD4=14 PD5=16 PD6=12 PD7=30 BUSY=26 STB=18 AFD=28 INIT=21 SLIN=19 KSI4=22 KSI5=24
FX505DU 2.0 bv 1.pdf
boardview
FX505DD BoardView.pdf
FX505DD REV2.0.pdf
EC_ FX505DU
Asus TUF FX505DD r2.0 boardview.FZ


FX505DD.jpgFX505DU REV2.0.jpg


Download list


FX505DU REV20.pdf
2.6 MB · Views: 3,047

FX505DD BoardView.pdf
5.7 MB · Views: 3,336

FX505DD REV2.0.pdf
3.9 MB · Views: 2,799

EC_ FX505DU.bin.zip
36.5 KB · Views: 331

Asus TUF FX505DD r2.0 boardview.FZ
139 KB · Views: 792

Can it be programmed with the svood from the keyboard?

FX505DD Rev 2.0 AMD CPU with NVidea GPU
NVidea GPU faulty have error code able to change in bios and disable Nvidea run only AMD APU?

FX505DD Rev 2.0 AMD CPU with NVidea GPU
NVidea GPU faulty have error code able to change in bios and disable Nvidea run only AMD APU?
Can't turn it off from the bios but I suspect you just need to remove the GPU and then check the results

ASUS TUF Gaming FX505DD/DT/DU
AMD
FX505DT, FX505DU
Schematics FX505DU REV2.0.pdf
FX505DD KB_pins=34 LEFT DOWN 08MM PD0=29 PD1=20 PD2=15 PD3=23 PD4=14 PD5=16 PD6=12 PD7=30 BUSY=26 STB=18 AFD=28 INIT=21 SLIN=19 KSI4=22 KSI5=24
FX505DU 2.0 bv 1.pdf
boardview
FX505DD BoardView.pdf
FX505DD REV2.0.pdf
EC_ FX505DU
Asus TUF FX505DD r2.0 boardview.FZ


View attachment 206075View attachment 167813
fx505dd please fix no display just fan spinning restart
