Chipmunk USB Tester

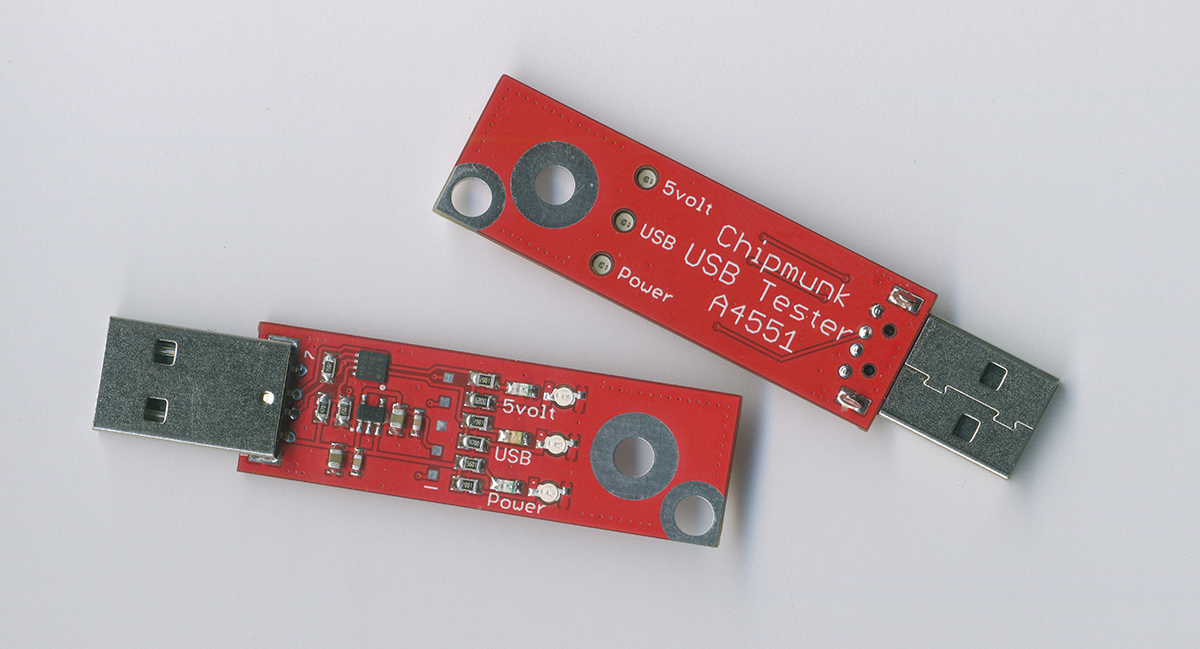

This is a simple but extremely useful tool for anyone repairing computers and laptops. It has 3 lights showing power and USB activity, and it offers a versatile connection to the GND line of the computer.
When repairing an Apple laptop it is important to know if the power rails are up.
The Chipmunk USB Tester has two red LEDs to show if the 5 volt on the USB is present. The first LED lights up if power is present on the 5 volt line. This LED is connected straight to the 5 volt line (well, via a resistor of course...) and will light up whenever any power above 2 volt is present on that line. The second LED will only light up if the voltage is correct i.e. if it is 5 volt plus or minus 5%.
The middle LED is green and lights up whenever there is activity on the USB bus. As the USB bus on an Apple laptop is driven by the PCH, this will indicate that the PCH and hence the CPU are running. On a computer with an image on the screen you would know that already, but in the case of a laptop with no image on the screen that is valuable information.
When working on a loose motherboard only connected to a charger this tool becomes extremely useful and enables you to see at a glance in how far the board is working. Like the Louis Rossmann 'Fan spin' but better.
The Chipmunk USB Tester also gives you an easy access to the computer's GND line. The hole near the corner is meant for attaching an alligator clip or grabber like the ground clip of an oscilloscope probe but you could even solder onto it. The middle hole is 4mm is size and allows you to mount the binding-post allowing you to connect loose wires or insert a 4mm banana plug. If the binding post is not in place then you can plug a banana plug straight into the hole. Both holes have a high-current connection to the computer (up to 2 amps). So when injecting power straight into a power rail you can use this as the ground connection, saving you the soldering of a ground wire. When doing diode-mode reading simply plug the red lead into the Chipmunk USB Tester and you will have freed up one hand to write down your measurements
This is a simple but extremely useful tool for anyone repairing computers and laptops. It has 3 lights showing power and USB activity, and it offers a versatile connection to the GND line of the computer.
When repairing an Apple laptop it is important to know if the power rails are up.
The Chipmunk USB Tester has two red LEDs to show if the 5 volt on the USB is present. The first LED lights up if power is present on the 5 volt line. This LED is connected straight to the 5 volt line (well, via a resistor of course...) and will light up whenever any power above 2 volt is present on that line. The second LED will only light up if the voltage is correct i.e. if it is 5 volt plus or minus 5%.
The middle LED is green and lights up whenever there is activity on the USB bus. As the USB bus on an Apple laptop is driven by the PCH, this will indicate that the PCH and hence the CPU are running. On a computer with an image on the screen you would know that already, but in the case of a laptop with no image on the screen that is valuable information.
When working on a loose motherboard only connected to a charger this tool becomes extremely useful and enables you to see at a glance in how far the board is working. Like the Louis Rossmann 'Fan spin' but better.
The Chipmunk USB Tester also gives you an easy access to the computer's GND line. The hole near the corner is meant for attaching an alligator clip or grabber like the ground clip of an oscilloscope probe but you could even solder onto it. The middle hole is 4mm is size and allows you to mount the binding-post allowing you to connect loose wires or insert a 4mm banana plug. If the binding post is not in place then you can plug a banana plug straight into the hole. Both holes have a high-current connection to the computer (up to 2 amps). So when injecting power straight into a power rail you can use this as the ground connection, saving you the soldering of a ground wire. When doing diode-mode reading simply plug the red lead into the Chipmunk USB Tester and you will have freed up one hand to write down your measurements
